Solar Production Monitoring Needs a Baseline
Most solar owners watch their solar production monitoring app closely for the first month, then check it less and less. That makes sense. The app tells you what the system produced, but it rarely tells you whether that was the right amount for your roof, your weather, and that day of the year.
A number without a reference is just a number. The useful clues are in the curve behind it.
Start With the Shape of the Production Curve
Daily totals are noisy. Clouds, temperature, season, and shading can move them enough that one disappointing day tells you very little on its own.
Start with a clear-sky day. A healthy array usually draws a smooth arc: production rises after sunrise, reaches its high point around solar noon, and falls toward evening. Faults and obstructions tend to change that shape in recognizable ways.
You are not trying to diagnose every component from an app. You are looking for a repeatable reason to investigate.
Five Patterns Worth Knowing
-
A Flat Top: The curve rises normally, holds level for a stretch, then falls. That can be inverter clipping, which happens when the array produces more DC power than the inverter can convert. A modest plateau may be expected on a well-matched system. New or unusually long flattening deserves a closer look, especially if heat may be causing the inverter to derate.
-
A Notch: A clean bite appears on one side of the arc at roughly the same time on clear days. That pattern often points to shading. If the timing moves gradually with the season, a growing tree or another fixed obstruction is a likely place to look.
-
A Step Down: The curve drops to a lower level and stays there. A string, substring, or group of modules may have stopped contributing. The size of the step can help narrow the search, but the app alone cannot confirm the cause.
-
A Ragged Curve: Output jumps rapidly on a cloudless day instead of tracing a smooth line. Intermittent communication or an electrical connection problem may be involved. Because a poor connection can become a safety issue, this pattern is worth addressing promptly.
-
A Slow Sag: Nothing looks dramatic, but peak output keeps falling against a fair year-over-year comparison. Soiling is one possible cause; our Kansas City solar panel cleaning guide explains when residue is more likely. Component degradation, shading, and equipment trouble can create a similar trend, which is why the next step is inspection rather than assumption.
Build Your Own Baseline
Two comparisons make the monitoring screen far more useful:
-
Year Over Year: Compare this July with last July instead of comparing July with June. The season and sun angle are closer, although weather still matters. Many monitoring platforms let you overlay both periods.
-
Panel to Panel: If your system has module-level electronics, open the per-panel view. Modules on the same roof plane should generally move together on a clear day. One panel that consistently trails its neighbors gives a technician a much better starting point than the whole-system total.
Do not overreact to a single odd day. Look for the same shape under similar conditions, then save a screenshot with the date and weather noted. Those dated screenshots can support the same service history described in our guide to solar panel warranty documentation.
When the Number Is Fine and Something Is Still Wrong

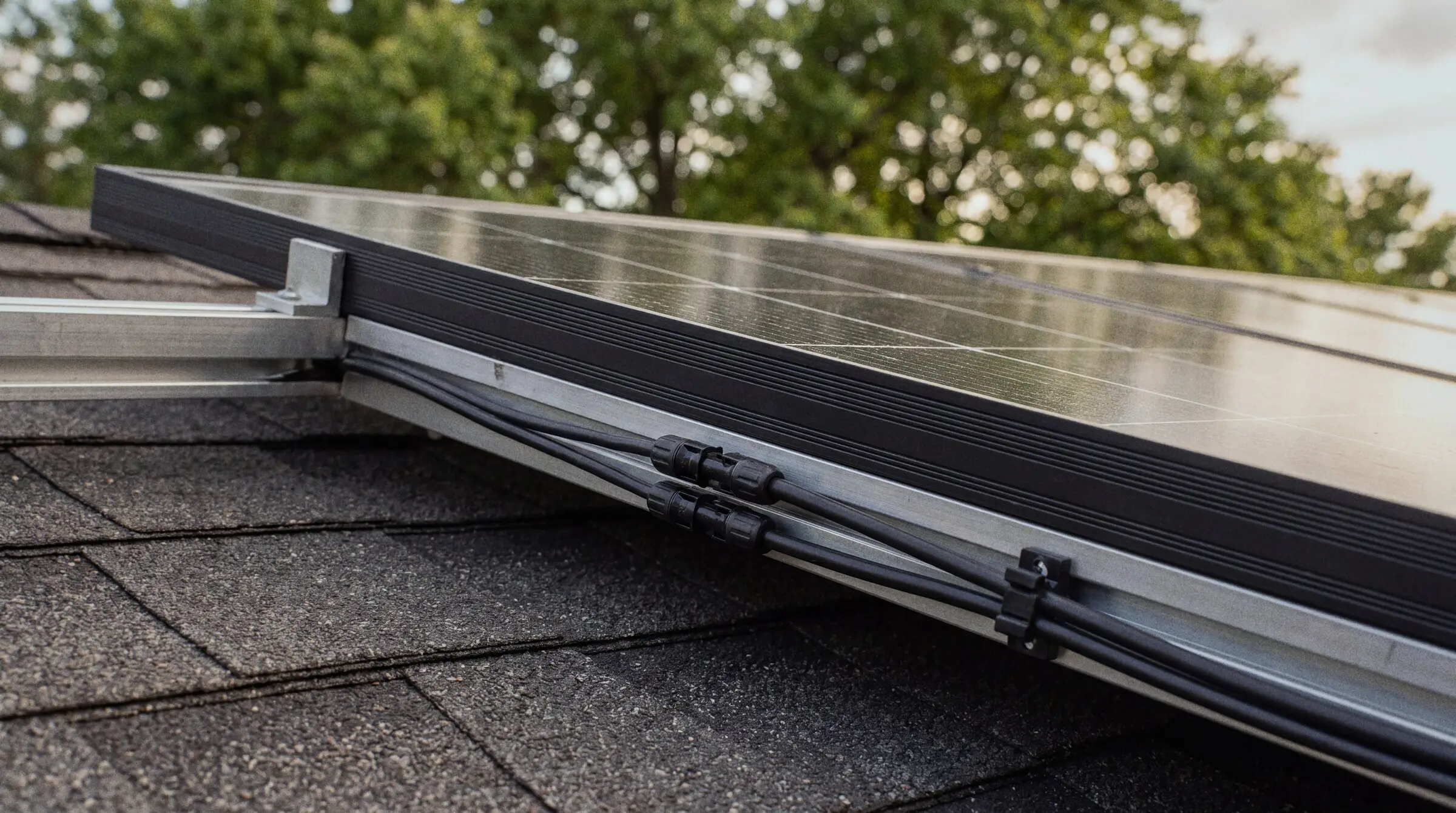

Production data cannot see a lifted animal guard, a loosening rail bolt, corrosion beginning at a roof penetration, or a hairline crack that has not affected output yet. Those need eyes on the array. When a curve repeatedly shows a fault pattern, Solar Scapes provides solar panel repair and troubleshooting for systems across the Kansas City metro, including systems installed by another company.
The reverse is true as well. An annual inspection is a snapshot. A fault that appears a month later can run until the next visit unless someone is watching the data in between.
That is why Solar Shield Silver and Gold pair monitoring with a documented physical inspection. Solar Scapes also explains the complete Solar Shield maintenance program, including annual inspections and production verification. If you prefer to watch the system yourself, start with the patterns above. They will tell you when the app deserves more than a glance.
